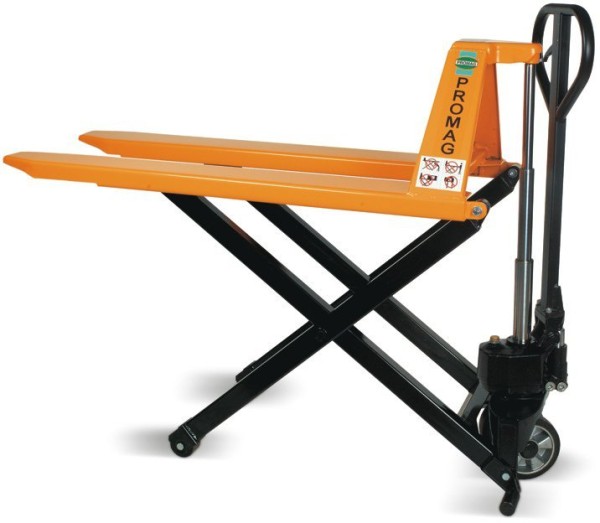

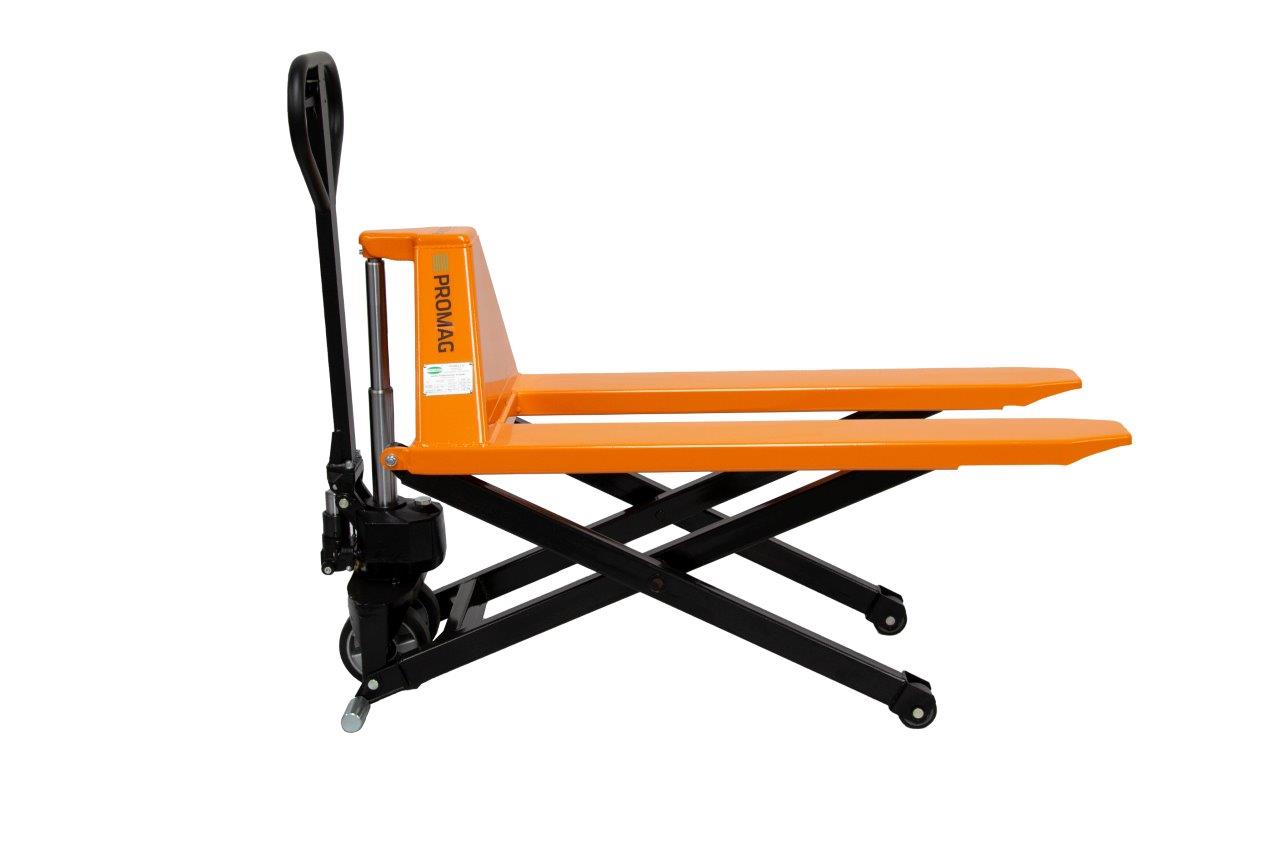

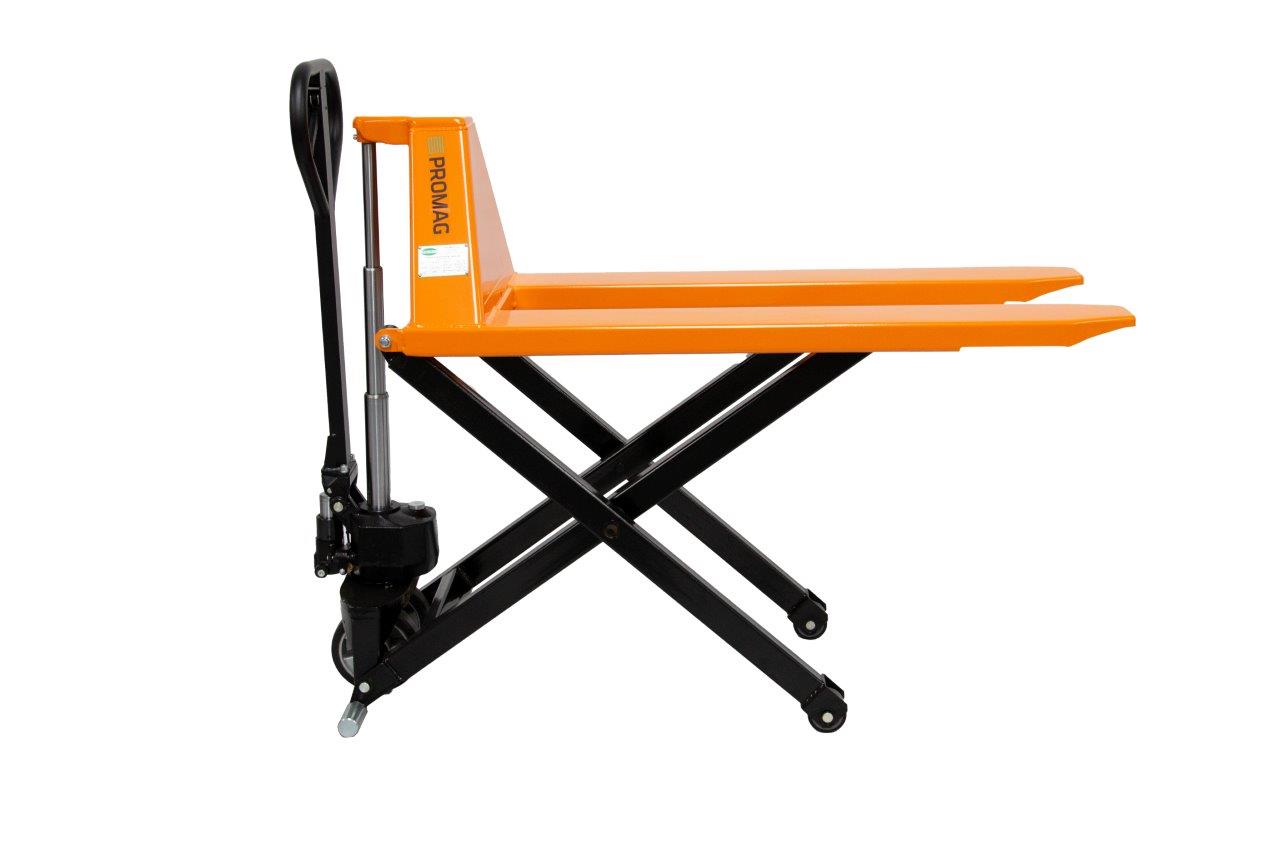

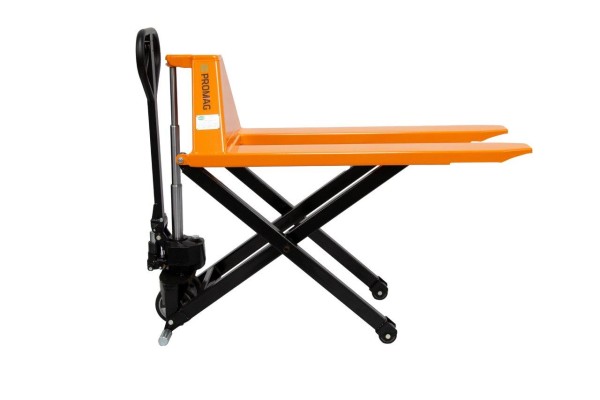

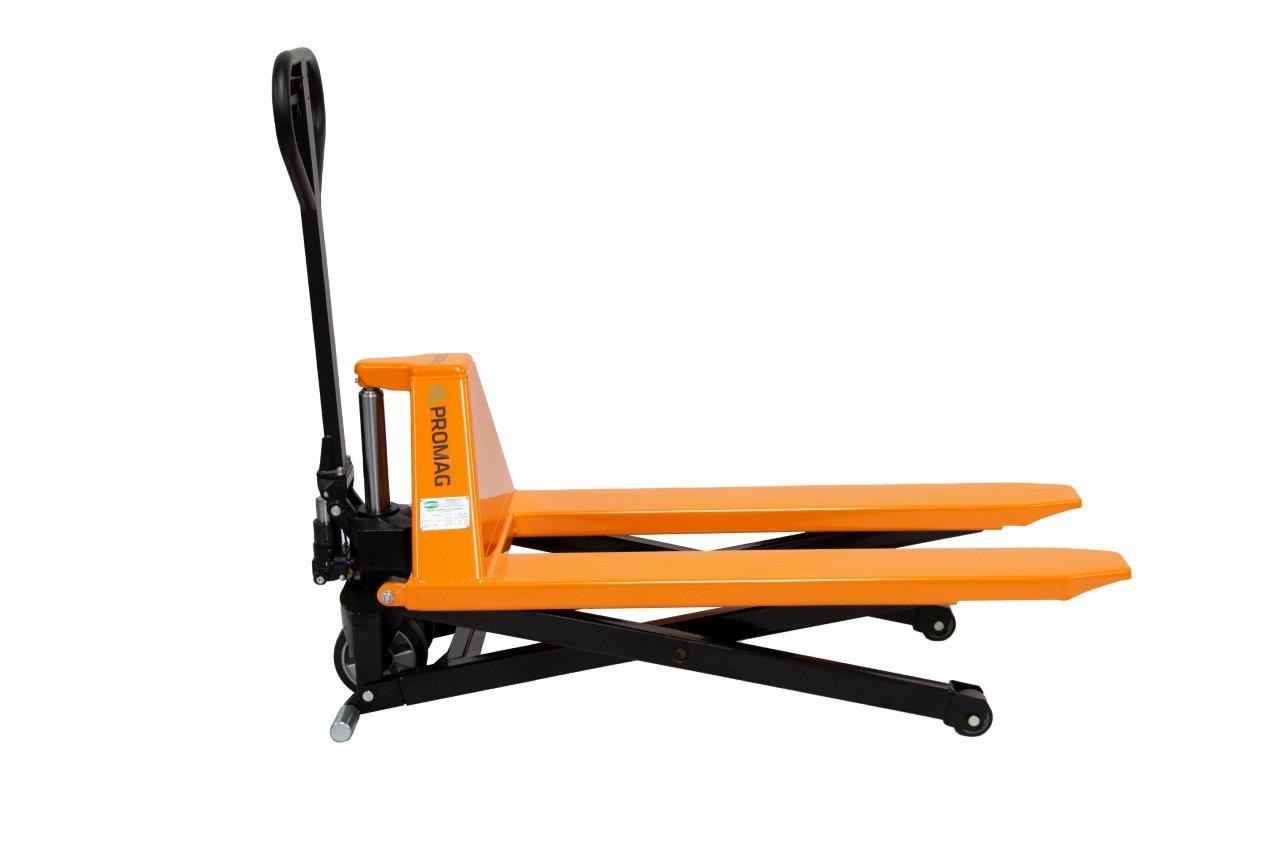

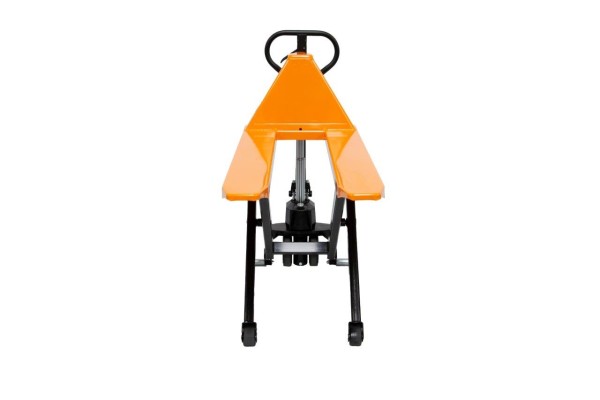

Scissor pallet truck PR 1500/1150 scissors g/p

The scissor pallet truck is used as a workplace lift. In the case of a scissor truck, it can perform three functions: transport, stop, lift. Safe lifting is achieved due to a mechanism that blocks the movement of the truck.

Scissor trucks are often referred to as cross or scissor pallet trucks.

The truck is used in production lines as a workplace lift, where it efficiently handles loads up to 1000 kg throughout the lifting range, and up to 1500 kg up to a height of 560 mm.

Main information about the scissor pallet truck PR 1500/1150 scissors:

• Lifting capacity: 1500 kg at a lifting height up to 560 mm, 1000 kg at a lifting height from 560 to 800 mm
• Truck safety is ensured by a mechanism that blocks movement during lifting
• Loads are protected by automatically reducing the lifting speed for heavy loads
• Hydraulic system with overload valve
• Possibility to move with forks raised up to approximately 200 mm
• Number of handle movements required to lift forks to maximum height: 48

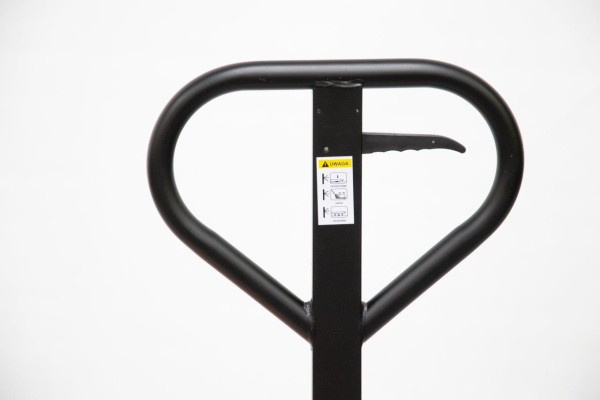

• Wheels at the handle: rubber
• Wheels at the forks: single polyurethane rollers
• Pallet truck painted with orange powder coating

Technical parameters

• Max. lifting height [mm]: 800
• Fork length [mm]: 1150
• Outer fork width [mm]: 550
• Weight [kg]: 100
• Nominal lifting capacity [kg]: 1500
• Electric/automatic motor: no
• Number of movements to lift the platform to max. height: 48
• UDT registration: no
• Warranty: 2 years
• Wheels at the handle: rubber

• Rollers at the forks: polyurethane rollers
• EU legalization: no
• Color: orange
